RV-9A: Left Wing Skins - 10/3/2006
Home Previous Entry Next Entry Back |
Share on:
|
|
 Finished work on installing the nutplates on the W-919 splice plate
After dimpling and hand countersinking the rivet holes in the rear wing spar, it gave me a new idea on how to prepare the nutplates for the splice strip. Below are the steps I used to dimple and countersink the nutplates.
|
 Dimpled the nutplates

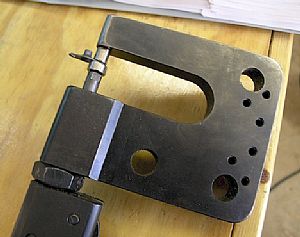

I used my narrow female dimple and male dimple to force a dimple into the nutplates using my ATS "alligator" hand squeezer.
|
 Countersunk the nutplates

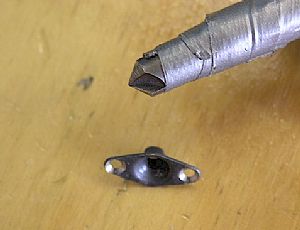

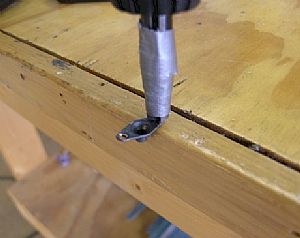

Then I used my homemade electric countersink (a countersink bit taped inside a cheapy battery powered screw driver) to countersink the previous dimples in the ends of the nutplates. This helps them to fit a little better.
|
 Nice countersink!

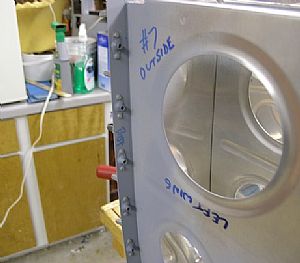

This works really great. The nutplates fit nicely over the 3 dimples in the splice plate.
|
