RV-9A: Right Fuel Tank - 1/24/2007
Home Previous Entry Next Entry Back |
Share on:
|
|

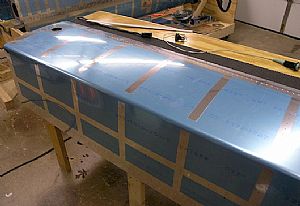

 Started removing the blue plastic film from the right tank skin
This is tedious, but worth it, I think…
|

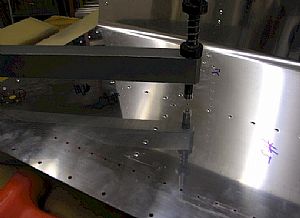

 Started dimpling the tank skin with the special tank dimple dies
I took my time and gave each dimple one big “whack”, while trying to keep the C Frame dimpler positioned over one of the table legs. When I whack a dimple when the dimpler is over the middle of the table, it tends to make a dip in the skin around the dimple.
|

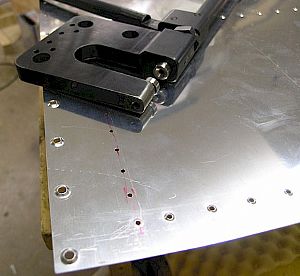

 Dimpled the tank screw holes
The instructions say to use the C Frame dimpler for this, but to me it makes big dips in the skin around the dimples. When I use my ATS hand squeezer, the dimples came out perfect, with no dips. On the other tank, I tried using an Avery yoke, but it had to much “give” in it to make a good flat dimple. The ATS squeezer yoke is heavy duty and doesn’t “give” when squeezing really hard.
|

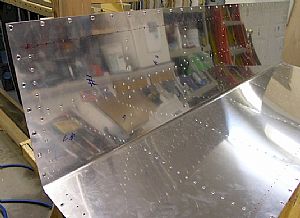

 All nice and dimpled.
|

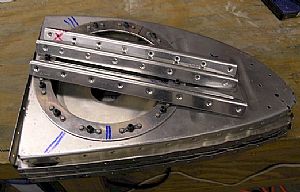

 Dimpled the ribs and stiffeners
I used the special tank dimple dies on these guys as well.
|
