Drilled the attach strips

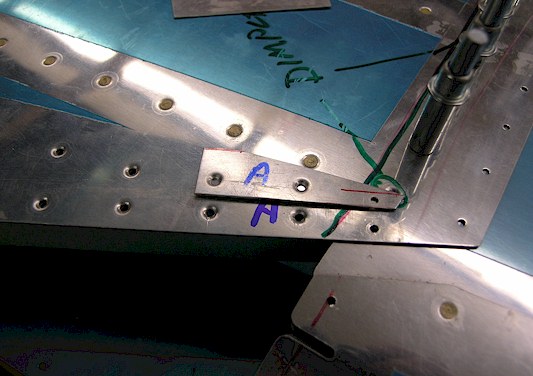

I held one of the aft F-623A attach strips under the skin and inside the F-623 rib and marked the center with fine point sharpie though the outside skin rivet hole. Then I pulled out the attach strip and drilled a single hole where the mark was with my drill press. After clecoing the attach strip back into place, I drilled the other 2 holes using the the outside skin as drilling guide. Then I dimpled the holes.
|
|
