Started work on a custom mounting bracket for the remote Compass

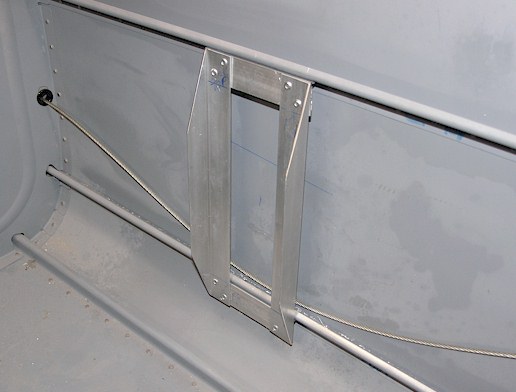

This is a work in progress. The Dynon Remote Compass has to be mounted level horizontally to the wings and pitched at the same angle as the D-100 EFIS unit in the panel. Both "J" channels, behind the baggage area go up towards the tail at different angles, so I started off by pop-riveting an aluminum piece of angle to each. Then I made two vertical angles and pop-riveted them to the two horizontal angles, all the time making sure that the vertical angles were perfectly straight up and down. Now I have to figure out how to mount the Remote Compass.
|
|
