Final drilled the skin to the spars and root rib

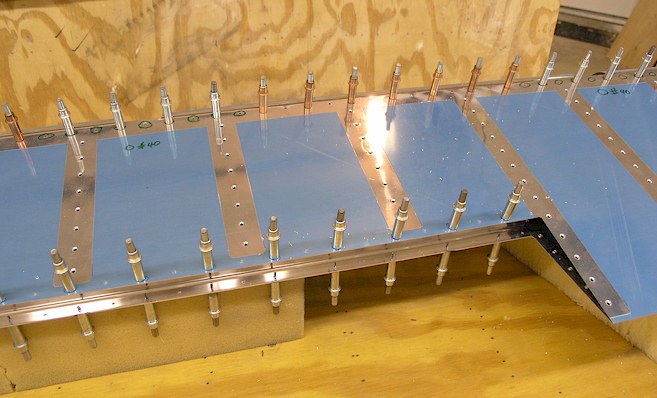

I drilled all the top skin holes with a #40 drill bit, then flipped the elevator over and only drilled part of the main spar, the whole trim spar and root rib. I marked the holes closest to the openings where the elevator attaches to the horizontal stabilizer. These holes were drilled with a #40 drill bit because they will have flat head rivets put into them. I will use my Avery 4 inch yoke to get these rivets. All of the other holes in the main spar were drilled with a #30 drill bit since they will have pop rivets put into them.
|
|
