I have been thinking about what my RV-9A will look like after I finish building it, so I created these drawings to play around with different color schemes to see what I could come up with. Just click on the drawings to see the full size drawings. Then you can "right click" on the drawings that come up and select "Save Picture As" to save them to your computer. You can also just "right click" on the small photos on this page and select "Save Target As" to save the drawings on your computer.
Share on:

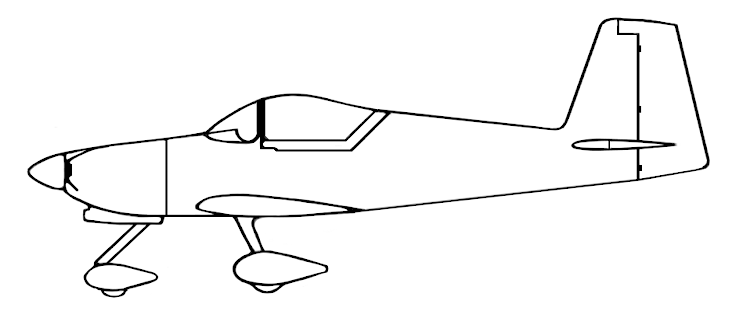

This Drawing can be used for either the RV-7A or the RV-9A side view. There just isn't that much difference.
Click here for a full size drawing

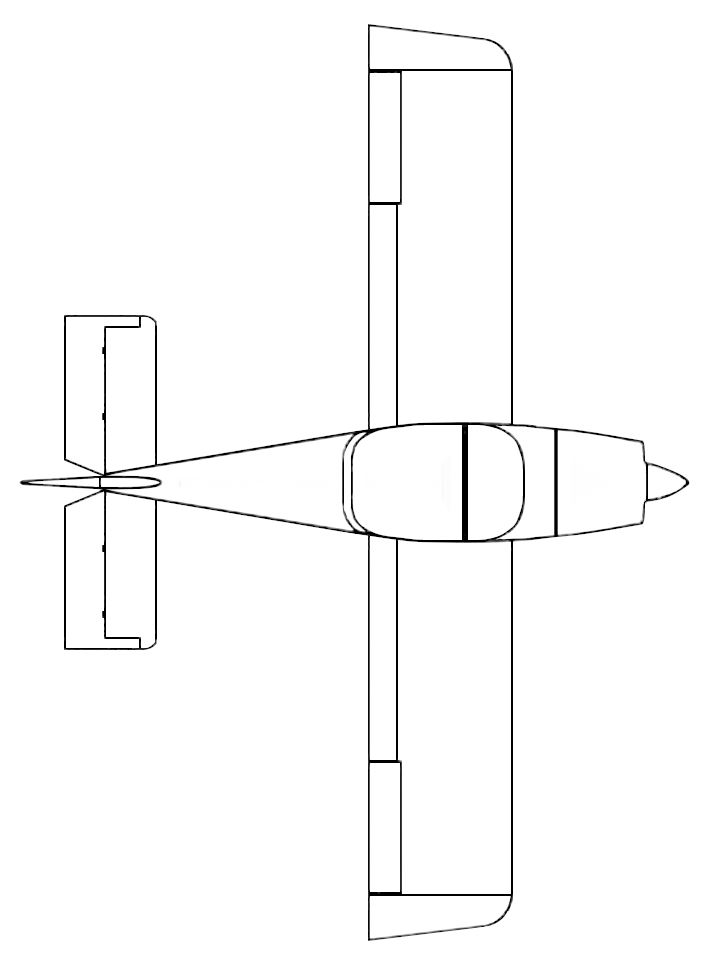

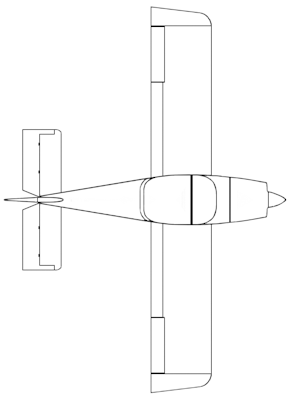

RV-9A top view.
Click here for a full size drawing

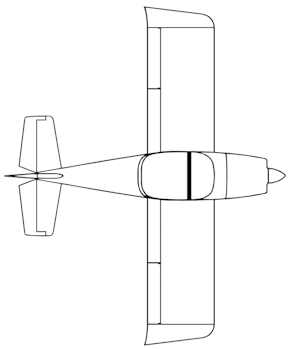

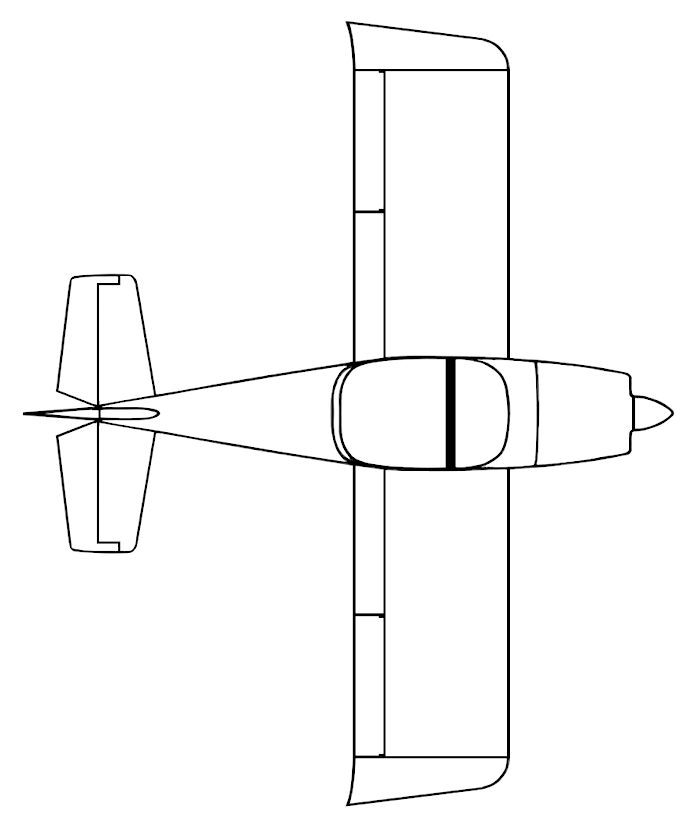

RV-7A top view.
Click here for a full size drawing
