RV-9A: Forward Section - 3/1/2009
Home Previous Entry Next Entry Back |
Share on:
|
|
 Started work on assembling the Brake Pedals

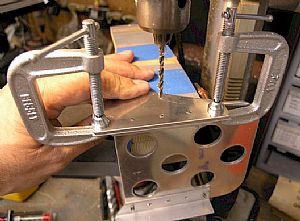

After cutting out the 4 inch angles, I clamped them to the brake pedals and drilled all the holes.
|

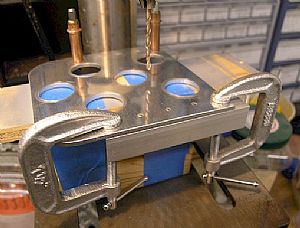

 Drilled the brake side plates to the angles
A no brainer here. I did the same thing with the clamps. One of the holes has to be drilled to 3/16".
|

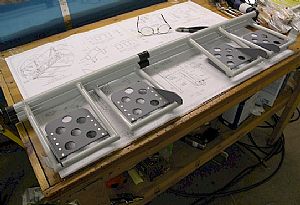

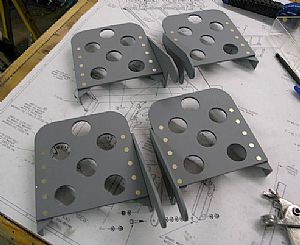

 Riveted the brake pedals together
After countersinking the brake pedal and side plates, I primed everything and riveted the pedals together with my pneumatic squeezer. This was probably one of the easiest riveting sessions ever. Very enjoyable.
|

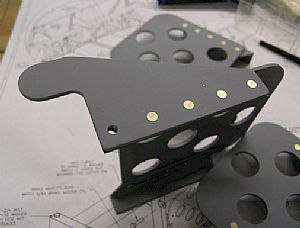

 Here's that 3/16 hole I mentioned earlier
This is where the pedal gets bolted to the brake frame.
|
 Layed everything out
Looks pretty cool...
|
